JP Cages - Porsche 987 Weld-In Cage Kit | FIA-Style Roll Cage for Cayman & Boxster

JP Cages - Porsche 987 Weld-In Cage Kit | FIA-Style Roll Cage for Cayman & Boxster

by JP Cages
£864.69 - £864.69
£864.69
£864.69 - £864.69
£864.69

Porsche 987 Weld-In Cage Kit | FIA-Style Roll Cage for Cayman & Boxster

Enhance the safety, rigidity, and performance of your Porsche 987 Cayman/Boxster with our precision-engineered DIY weld-in roll cage kit. Designed for track day enthusiasts, club racers, and competitive motorsport applications, this FIA-style roll cage provides a rigid, race-ready structure to meet the demands of high-performance driving. This DIY kit is CNC-notched, marked, and fully labelled, allowing for precise fitment and assembly by those with welding and fabrication expertise. Unlike bolt-in cages, this weld-in roll cage is permanently secured to the chassis for maximum safety and chassis reinforcement.

🚗 Designed for professional race teams and experienced fabricators building a Porsche 987 track car!


🔹 Choose Your Material – Standard CDS (E355+N) or BS4-T45 Steel

Our Porsche 987 DIY Weld-In Roll Cage Kit is available in two high-strength material options to match your performance and budget needs:

📌 Standard CDS (E355+N) – Durable & Cost-Effective

✔ Commonly used in track and club racing applications
✔ Offers excellent structural integrity and impact resistance
✔ Heavier than T45 but provides reliable protection at an affordable price

📌 BS4-T45 – Lightweight & Motorsport-Grade

✔ Aerospace-grade steel with higher tensile strength than E355+N
✔ Allows for thinner-walled tubing, reducing weight while maintaining maximum strength
✔ The preferred choice for competitive motorsport and high-performance builds 💡 Both materials offer outstanding protection, but T45 is the superior option for those looking to save weight without sacrificing strength.

🔹 What’s Included in the Porsche 987 Weld-In Roll Cage Kit?

This comprehensive roll cage kit includes everything needed for a complete installation, ensuring structural reinforcement while maintaining proper clearances for seat fitment and interior components.
✔ Main Roll Bar (MRB) – Central structural component
✔ X-Bracing Components – D1, D2, D3 for added chassis rigidity
✔ Left & Right Backstays – LB, RB for rear chassis reinforcement
✔ Harness Bars – LH, RH for racing harness compatibility
✔ Front A Bars – RAB, LAB to connect the front structure
✔ Roof Bar – RFB for upper cage stability
✔ Roof Diagonal – RD1 for additional roll-over protection
✔ Double Door Bars – LLD, RLD, LUD, RUD for side impact protection
✔ Mounting Boxes & Plates – Pre-cut and ready for positioning
📌 Every component is CNC-notched, pre-marked, and labelled to ensure a precise assembly process.
🔧 This kit is designed for professional fabrication and welding—installation should be performed by an experienced motorsport technician.

🔹 Step-by-Step Installation Guide

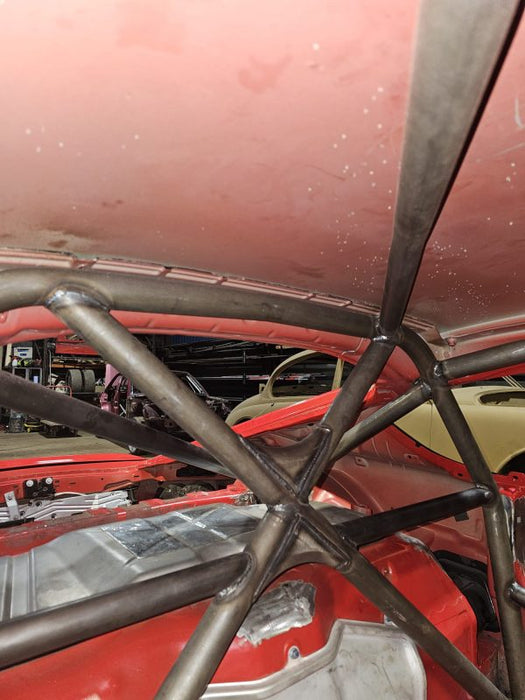

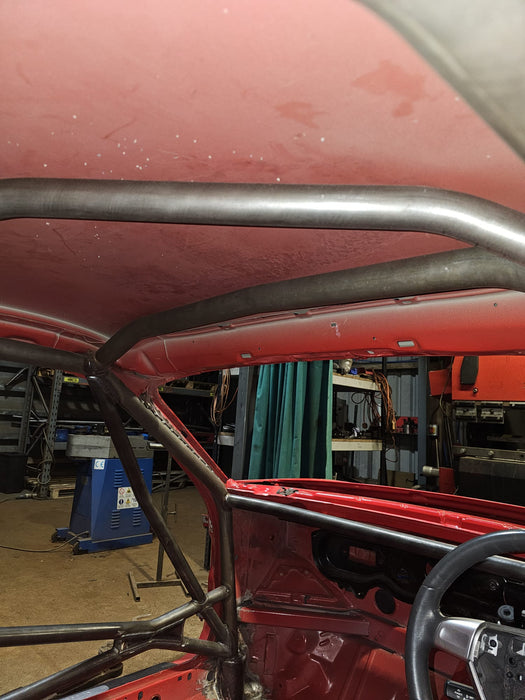

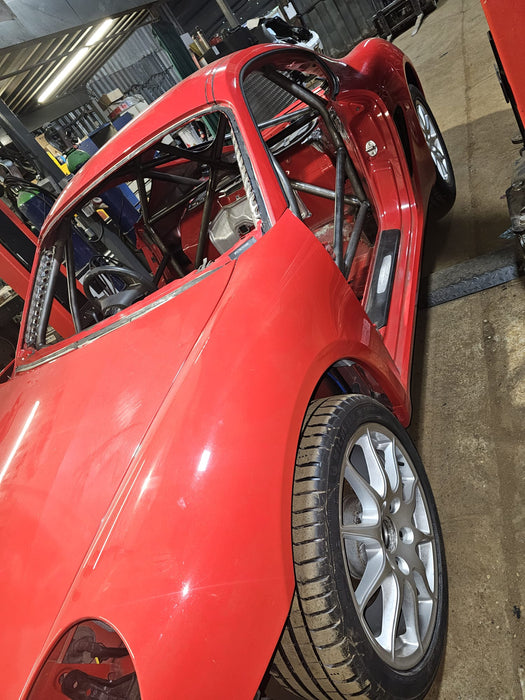

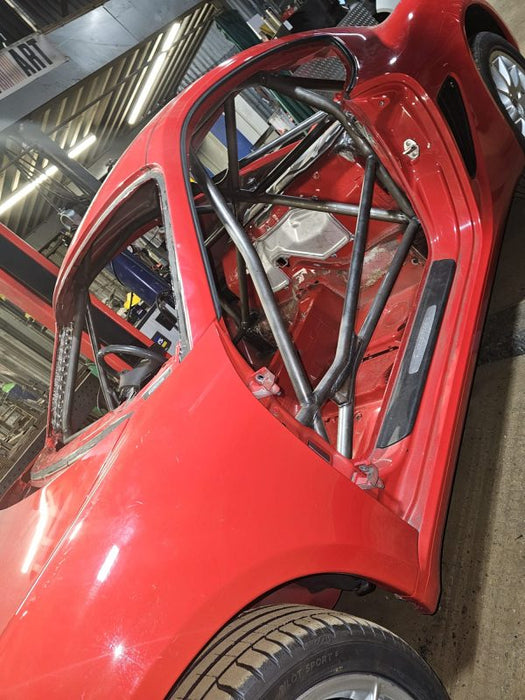

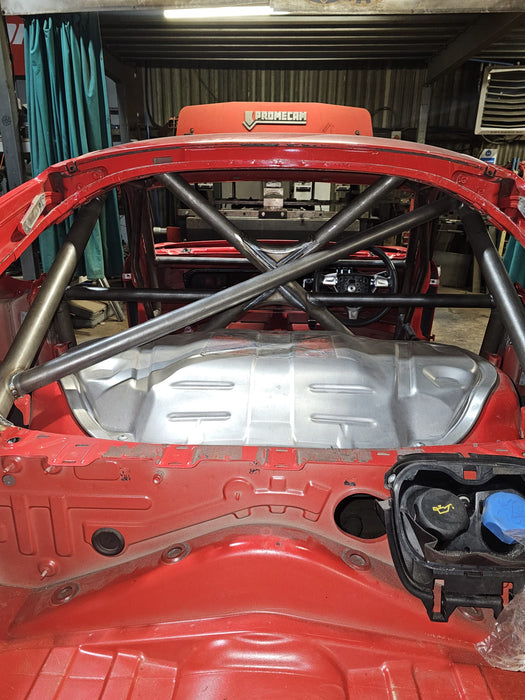

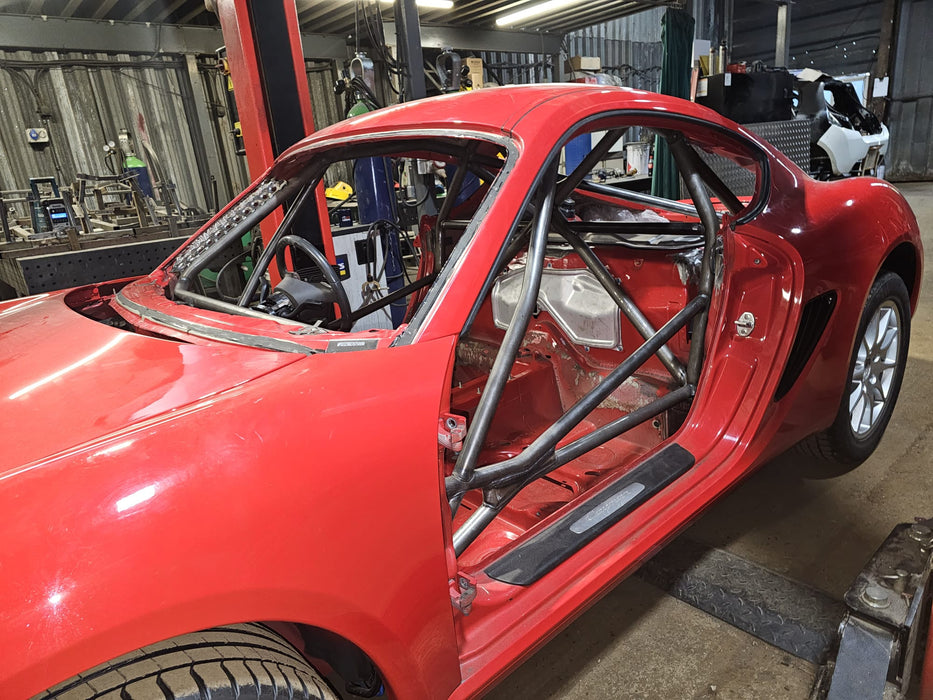

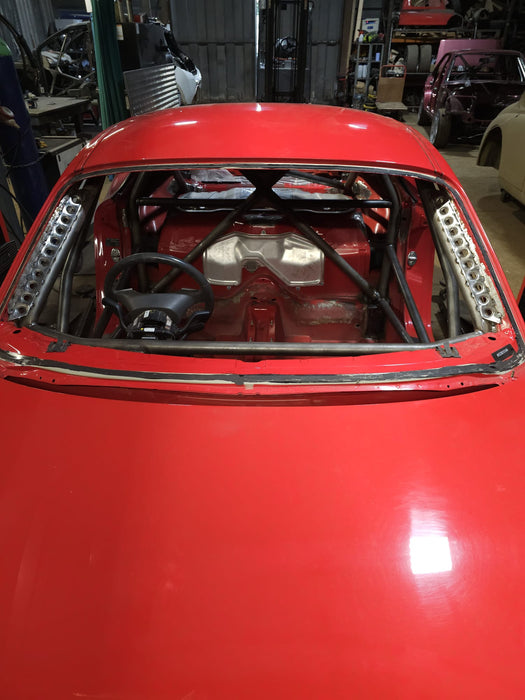

💡 Before starting, reference the images provided to determine mounting positions and body modifications required.

1️⃣ Preparation

✅ Remove any unnecessary body components to create clearance for the cage. ✅ Clean all paint from the chassis where mounting points will be welded.

2️⃣ Main Roll Bar & Front Section Fitment

✅ Remove the factory box section & mounts from the chassis.
✅ Tack the mounts directly onto the chassis to establish a solid base.
✅ Position the Main Roll Bar (MRB), tacking it into place with adjustability for lean angle.

3️⃣ Front A Bars & Door Bar Alignment

✅ Fit the LAB (Left A Bar) and LLD (Lower Left Doorbar) to determine landing points.
✅ Mark and tack front mounts into position before mirroring the setup on the driver's side.
✅ Install LAB/RAB (Left & Right A Bars) and door bars, ensuring proper alignment and clearance.

4️⃣ Roof Bar & Diagonal Installation

✅ Fit the roof bar (RFB) and roof diagonal (RD1) to reinforce the upper structure. ✅ Tack all components into place before final welding. \n

5️⃣ Weld the Cage Framework

✅ Fully weld all accessible joints, securing the structure.
🚫 DO NOT weld around the mounts or feet at this stage!
✅ Remove the cage from the car by breaking free from the mounts.
✅ Use ratchet straps to slightly compress the cage, allowing better access to hidden joints.
✅ Fully weld the entire structure before reinstallation.

6️⃣ Rear Backstays & X-Bracing Fitment

✅ Reposition the cage inside the vehicle, aligning it with mounting points.
✅ Install the X-bracing, harness bars, and centre gussets, reinforcing the structure.
✅ Ensure the rear backstays (RB & LB) land at 930mm centres for proper fitment.

7️⃣ Final Welding & Assembly

✅ Weld the door bar gussets and A-pillar gussets for added rigidity.
✅ Clean all weld spatter for a professional-grade finish.
✅ The Porsche 987 Weld-In Cage is now complete and track-ready!
🚀 Designed to meet FIA safety standards when installed correctly in a professional motorsport environment.

🔹 Why Choose JP Cages' Porsche 987 Weld-In Roll Cage Kit?

✅ Track-Ready & Motorsport-Grade – Engineered for chassis reinforcement & safety compliance.
✅ CNC-Notched & Labelled Components – Ensures precise alignment & assembly.
✅ Available in Two Material Options – Choose between CDS (E355+N) or BS4-T45 based on your needs.
✅ Trusted by Racers & Performance Enthusiasts – Built for high-performance applications.
✅ Designed & Manufactured in the UK – Produced with precision & quality control.
📌 This kit is ideal for Porsche 987 owners building a dedicated track car or competition-ready vehicle.

🚀 Order Now – Motorsport-Grade Porsche 987 Weld-In Cage Kit!

Transform your Porsche 987 Cayman or Boxster into a track-ready machine with our high-strength, FIA-inspired weld-in roll cage kit. Whether you're building a track-day car, club racer, or competitive motorsport vehicle, this kit provides unparalleled safety, rigidity, and structural reinforcement.
📦 Fast UK & International Shipping
🔧 Professional Installation Recommended
